Overview
TECHNICAL CHARACTERISTICS
Rated current: 16A / 20A / 32A
Rated voltage: 200-250V AC / 380-480V AC
Frequency: 50-60 Hz
Insulation voltage: 250V / 500 V
Protection degree: IP55 ( mated ) ( IPXXD)
Operating temperature: -30 ℃ to + 50℃
Material: Engineering plastic
Glow Wire test: 850 ℃-960℃
IK Grade at 20℃: IK08
Colour: Black

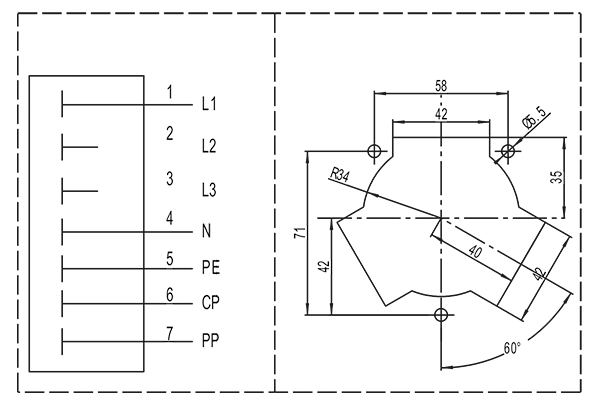

Number of poles: L1-L2-L3-N-PE-CP-PP
Size of conductors: 2.5 to 6 mm2
Saline solution Resistant
UV rays: Resistant
EN 62196-1 (2014)
Plugs, socket-outlets, vehicle couplers and vehicle inlets.
Conductive charging of electric vehicles.
Part 1: General requirements.
EN 62196-2 (2016)
Plugs, socket-outlets and vehicle couplers.
Conductive charging of electric vehicles.
Part 2: Dimensional interchangeability requirements for
a.c. pin and contact-tube accessories.
