Overview
1. Cosmetic inspect、Environment description

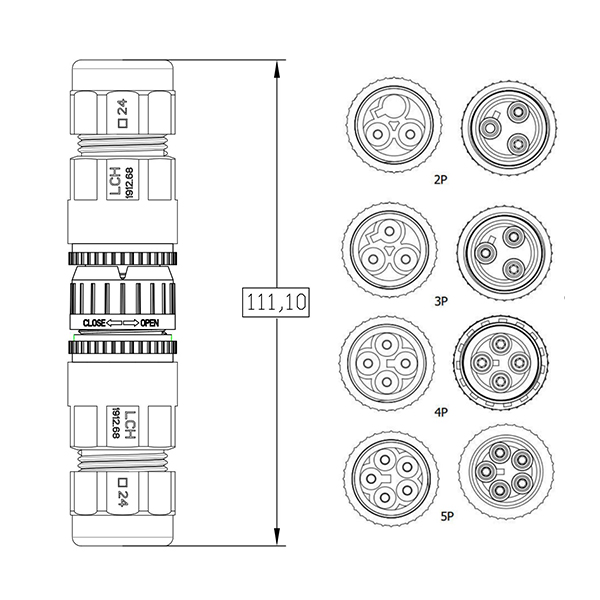

1.1 External dimensions for reference on the drawing
1.2 Normal ambient condition
Operating temperature：-30℃~85℃
Storage Temperature：-30℃~85℃
Barometric pressure：86~106KPa
Grade of Waterproofing：IP68
2. Product structure to describe
2.1 Method of connecting wire：Crimping by screw
2.2 Cable diameter：Ø5mm ~ Ø8mm ；Ø8mm ~ Ø12mm
2.3 Metal parts：Cu
2.4 Plastic housing：PA66, V-0, 960℃,PTI:250
2.5 Rubber gasket: Silicone
2.6 Maximum Current: 16A(for 2P/ 3P/ 4P);10A(for 5P)
3. Test standard
IEC61984:2009
IEC62444:2013
IEC60529:1991+A1:2000+A2:2013
4. Warranty 3 years limited
