Overview
1. Cosmetic inspect、Environment description

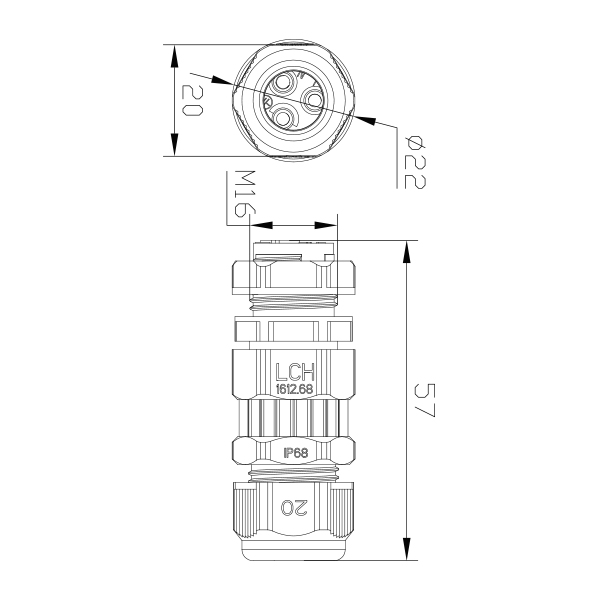

1.1 External dimensions for reference on the drawing
1.2 Normal ambient condition
Operating temperature:-30℃~85℃
Storage Temperature:-30℃~105℃
Barometric pressure:86~106KPa
Grade of Waterproofing:IP68

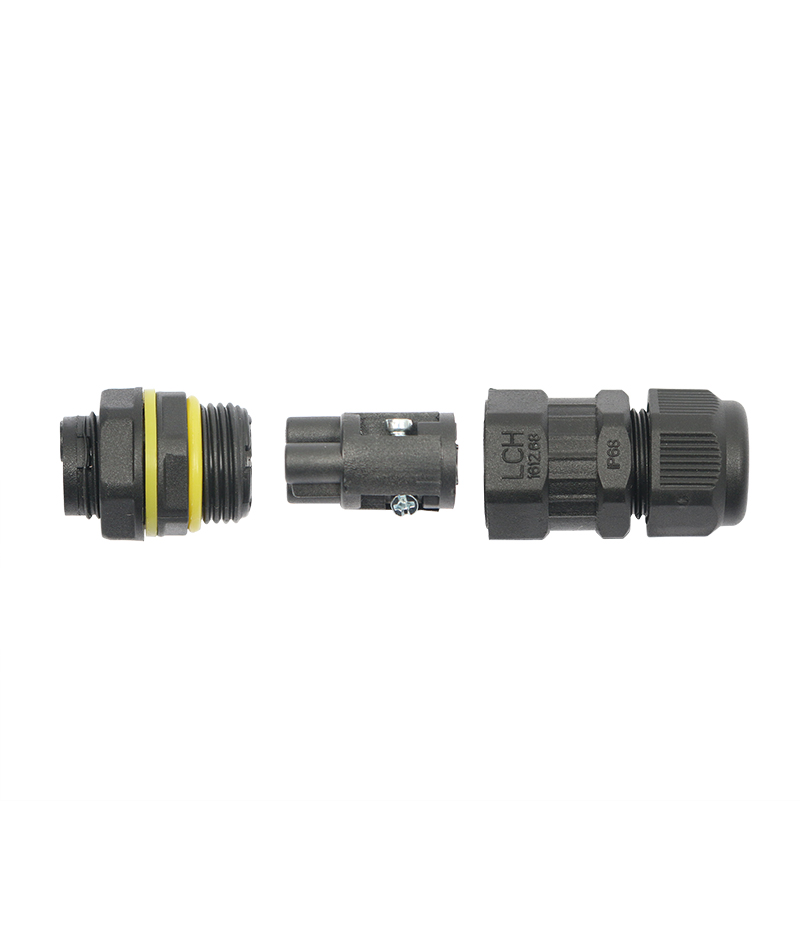

2. Product structure to describe
2.1 Method of connecting wire: Fast connect fixation
2.2 Cable diameter:Ø5mm ~ Ø9mm
2.3 Metal parts:Cu
2.4 Plastic housing:PA66, V-0, 960℃,PTI:250
2.5 Rubber gasket: Silicone
2.6 Maximum Current: 16A
3. Test standard
IEC61984:2009
IEC62444:2013
IEC60529:1991+A1:2000+A2:2013
4. Warranty 3 years limited
